SBI-FL/FLS/FLL
詳情


Model Download
SBI15 FLS
SBI15 FL
SBI15 FLL
SBI20 FLS
SBI20 FL
SBI20 FLL
SBI25 FLS
SBI25 FL
SBI25 FLL
SBI30 FLS
SBI30 FL
SBI30 FLL
SBI35 FLS
SBI35 FL
SBI35 FLL
SBI45 FL
SBI45 FLL
SBI55 FL
SBI55 FLL
SBI65 FL
SBI65 FLL

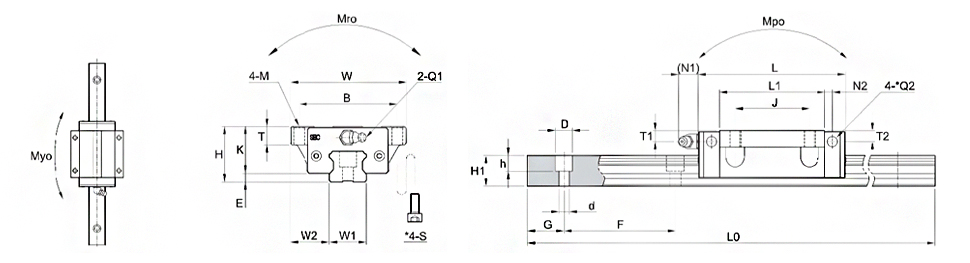

Mounting dimension Block dimensions Rail dimension Basic load
rating
[kN] 		Permissible static
moment
[kN?m] 		Mass
H W L E Mounting tap hole L1 T±1 K Grease fitting W1 W2 H1 F Bolt hole G Max
length
of rail
LO 		Block
[kg] 		Rail
[kg/m]
B J M *S T1 N1 T2 N2 Q1 *Q2 d D h C Co Mro Mpo Myo
24 47 56.8 3 38 30 M5 M4 38.2 11 21 4.5 5.5 3.8 3.8 M4x0.7 ?3.5 15 16 13 60 4.5 7.5 5.5 20 3000 12.3 18.3 0.13 0.08 0.08 0.20 1.3
24 47 63.8 3 38 30 M5 M4 45.2 9 21 4.5 5.5 3.8 3.8 M4x0.7 ?3.5 15 16 13 60 4.5 7.5 5.5 20 3000 14.1 24.1 0.16 0.17 0.17 0.24 1.3
24 47 79.4 3 38 30 M5 M4 60.8 9 21 4.5 5.5 3.8 3.8 M4x0.7 ?3.5 15 16 13 60 4.5 7.5 5.5 20 3000 17.1 31.7 0.21 0.29 0.29 0.30 1.3
30 63 73.8 4.6 53 40 M6 M5 51.8 12 25.4 6 12 5.8 5 M6x0.75 ?3.5 20 21.5 16.5 60 6 9.5 8.5 20 4000 20.2 29.1 0.29 0.18 0.18 0.44 2.2
30 63 78.8 4.6 53 40 M6 M5 56.8 12 25.4 6 12 5.8 5 M6x0.75 ?3.5 20 21.5 16.5 60 6 9.5 8.5 20 4000 22.2 38.2 0.36 0.33 0.33 0.46 2.2
30 63 96.4 4.6 53 40 M6 M5 74.4 12 25.4 6 12 5.8 5 M6x0.75 ?3.5 20 21.5 16.5 60 6 9.5 8.5 20 4000 27.9 50 0.47 0.56 0.56 0.60 2.2
36 70 83 5.5 57 45 M8 M6 61 13 30.5 6 12 5 5 M6x0.75 ?3.5 23 23.5 20 60 7 11 9 20 4000 28.9 42.8 0.49 0.32 0.32 0.66 3
36 70 92 5.5 57 45 M8 M6 70 13 30.5 6 12 5 5 M6x0.75 ?3.5 23 23.5 20 60 7 11 9 20 4000 31.5 52.1 0.56 0.56 0.56 0.75 3
36 70 108 5.5 57 45 M8 M6 86 13 30.5 6 12 5 5 M6x0.75 ?3.5 23 23.5 20 60 7 11 9 20 4000 36.7 64.4 0.69 0.84 0.84 0.80 3
42 90 96.8 7 72 52 M10 M8 68.8 15.5 35 8.5 12 7.8 5 M6x0.75 ?5.7 28 31 23 80 9 14 12 20 4000 39.2 57.7 0.80 0.49 0.49 1.08 4.25
42 90 107.6 7 72 52 M10 M8 79.6 15.5 35 8.5 12 7.8 5 M6x0.75 ?5.7 28 31 23 80 9 14 12 20 4000 42.8 65.4 0.85 0.77 0.77 1.25 4.25
42 90 131.6 7 72 52 M10 M8 103.6 15.5 35 8.5 12 7.8 5 M6x0.75 ?5.7 28 31 23 80 9 14 12 20 4000 51.3 84.7 1.10 1.30 1.30 1.65 4.25
48 100 108.2 8 82 62 M10 M8 78.2 15 40.5 8 12 8 6 M6x0.75 ?5.7 34 33 26 80 9 14 12 20 4000 52.0 73.3 1.24 0.71 0.71 1.53 6.02
48 100 124.6 7.5 82 62 M10 M8 94.6 15 40.5 8 12 8 6 M6x0.75 ?5.7 34 33 26 80 9 14 12 20 4000 59.5 89.1 1.42 1.28 1.28 1.92 6.02
48 100 152.6 7.5 82 62 M10 M8 122.6 15 40.5 8 12 8 6 M6x0.75 ?5.7 34 33 26 80 9 14 12 20 4000 71.3 115.3 1.83 2.12 2.12 2.43 6.02
60 120 142 9 100 80 M12 M10 108 18 51 10.5 13.5 9.3 6.5 PT1/8 ?5.7 45 37.5 32 105 14 20 17 22.5 4000 79.2 116.3 2.48 1.90 1.90 3.25 9.77
60 120 174 9 100 80 M12 M10 140 18 51 10.5 13.5 9.3 6.5 PT1/8 ?5.7 45 37.5 32 105 14 20 17 22.5 4000 94.8 150.5 3.21 3.14 3.14 4.40 9.77
70 140 172.4 12 116 95 M14 M12 131 22 58 12 13 12 8 PT1/8 ?8.7 53 43.5 38 120 16 23 20 30 4000 127.3 181.8 4.81 2.97 2.97 5.08 13.72
70 140 211.8 12 116 95 M14 M12 170.4 22 58 12 13 12 8 PT1/8 ?8.7 53 43.5 38 120 16 23 20 30 4000 147.9 224.5 5.95 4.78 4.78 6.58 13.72
90 170 219.8 19 142 110 M16 M14 170.4 26 71 14 13 14 10 PT1/8 ?8.7 63 53.5 53 150 18 26 22 35 4000 188.3 261.7 8.24 5.57 5.57 10.17 23.17
90 170 272.2 19 142 110 M16 M14 222.8 26 71 14 13 14 10 PT1/8 ?8.7 63 53.5 53 150 18 26 22 35 4000 232.5 354.1 11.15 9.86 9.86 13.29 23.17
